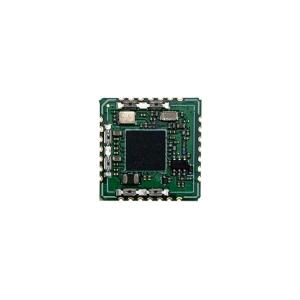

ST-STM32WLE LoRa Module LRW32NA-C

Ask Lasest Price
Brand Name :	Cansec Wireless
Model Number :	LRW32NA-C
Price :	USD5.5$ Per Piece
Payment Terms :	T/T
Supply Ability :	20000000 units per year
Delivery Time :	5-8 weeks

Add to Cart

Product Details
Company Profile

ST-STM32WLE LoRa Module LRW32NA-C

At Command Available Cansec Smart Iot Lora Module Tiny LRW32NA-C ST-STM32WLE Lora Module With Analog Sensor RF

Parameter		Min	Typ	Max	Unit
Operating Voltage		2.5	3.3	3.7	V
Operating Temperature		-20	-	70	°C
Current Consumption	Rest	-	2		uA
	Receive	-	12.5		mA
	Transmit Mode	-	120		mA
TX Power		-		20	dBm
RX Sensitivity		-	-140		dBm

1. The LRW32 long-range wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant LPWAN
radio solution: LoRa® (only available in STM32WLE5xx), (G)FSK,
(G)MSK, and BPSK.2. The devices embed high-speed memories (Flash memory up to 256
Kbytes, SRAM up to 64 Kbytes), and an extensive range of enhanced
I/Os and peripherals.
3. The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write
protection and proprietary code readout protection.
4. These devices offer a 12-bit ADC, a 12-bit DAC low-power
sample-and-hold, two ultra-low-power comparators associated with a
high-accuracy reference voltage generator.
Application
Smart meters
Supply chain and logistics
Building automation
Agricultural sensors
Smart cities
Retail store sensors
Asset tracking
Street lights
Parking sensors
Environmental sensors
Healthcare
Safety and security sensors
Remote control applications
Features
LoRa ™ spread spectrum modulation technology
Receive sensitivity as low as -141 dBm
Excellent resistance to blocking
Supports preamble detection
Supports half-duplex SPI communication
Programmable bit rate up to 300Kbps
Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
Supports automatic RF signal detection, CAD mode and ultra high
speed AFC
Packets with CRC, up to 256 bytes
Small package with double volume stamps
